Medical Gas Pipeline Systems

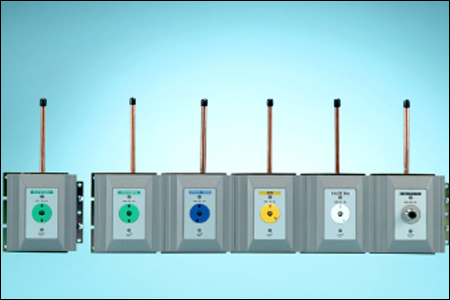

Oxygen, Vacuum, Nitrous, Medical Air and vacuum outlets Indian/ Imported are suitable for external or internal wall mounting, for bed head unit and ceiling pendant installation. Outlets are installed at the final delivery points in a medical gas pipeline system.

The automatic change over decompression unit is designed to supply medical gas (oxygen- nitrous oxide-carbon dioxide) of any type of medical gas network, where continuity of supply is essential and where the pipeline is supplied from manifold high pressure gas cylinders. Automatic central manifold system for medical gases (O2, N2O, CO2) with pressure reducers, high pressure shut-off valves, automatic change over unit, analogue sensors, cylinder ramps, flexible connections, pigtails, cylinder holders and emergency inlet point.

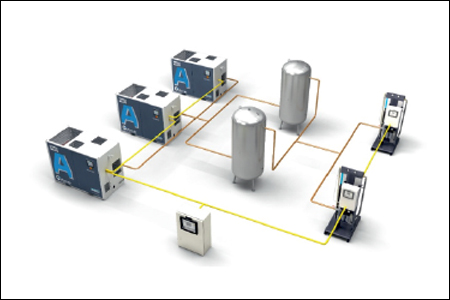

Medical Air System with three or more compressors, two or more reservoirs, one duplex conditioning system (absorption dryers, prefilters, activated charcoal filters, particle filters and dew point alarm), emergency inlet point and electronic control panel. A wide range of capacities from 10m3/h to 1.000m3/h are available to satisfy any request. The fully automatic medical compressed air plant provides a reliable and constant air supply, in predefined pressure level, without the transport and management cost associated with heavy gas cylinders.

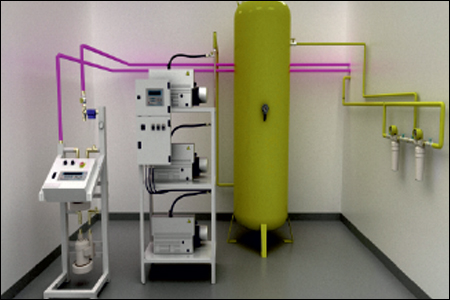

Vacuum Central Station consists of one, two, three or four vacuum pumps. The vacuum system is design to operate according to ISO 7396- 1, BS HTM 2022, BS HTM 02-01 standards. The duty vacuum pump is rated at 100% of the installation design flow rate and a standby pump capable of automatic operation is fitted (if needed). The vacuum plant is designed to enable isolation of any one component without interrupting system operation.
